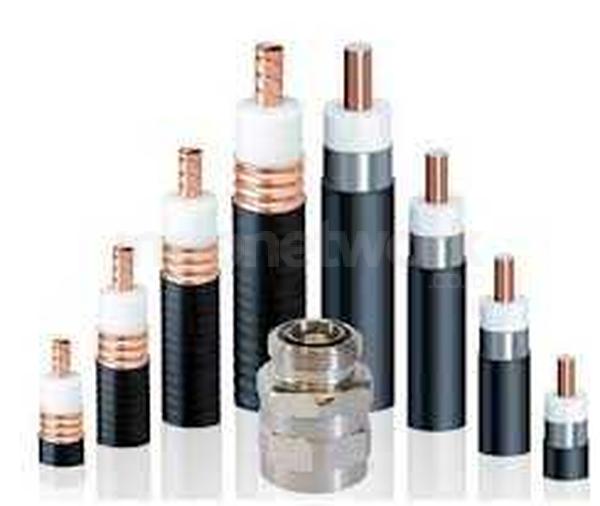

Spesifikasi Kabel Heliax Andrew AVA5-50 7/8″ Heliax Andrew Virtual Air Coaxial Cable, corrugated copper, 7/8 in, black PE jacket

Construction Materials
Jacket Material PE
Outer Conductor Material Corrugated copper
Dielectric Material Foam PE
Flexibility Standard
Inner Conductor Material Copper tube
Jacket Color Black

Dimensions
Nominal Size 7/8 in
Cable Weight 0.30 lb/ft | 0.45 kg/m
Diameter Over Dielectric 24.130 mm | 0.950 in
Diameter Over Jacket 27.991 mm | 1.102 in
Inner Conductor OD 9.4488 mm | 0.3720 in
Outer Conductor OD 25.400 mm | 1.000 in

Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 22.0 pF/ft | 73.0 pF/m
dc Resistance, Inner Conductor 0.410 ohms/kft | 1.435 ohms/km
dc Resistance, Outer Conductor 0.340 ohms/kft | 1.116 ohms/km
dc Test Voltage 6000 V
Inductance 0.184 μH/m | 0.056 μH/ft
Insulation Resistance 100000 MOhm
Jacket Spark Test Voltage (rms) 8000 V
Operating Frequency Band 1 – 5000 MHz
Peak Power 91.0 kW
Pulse Reflection 0.5%
