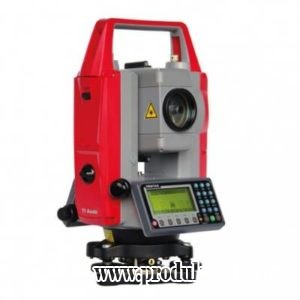

Total Station Pentax R1505N
Total Station Pentax R1505N reflectorless 500m, Dual Display, Memory 60,000 points
Overview :
• Long range EDM: reflectorless up to 500m, one prism up to 3,000m
• Large internal memory: 60000 points.
• Dual display as a standard
• Easy transfer to a PC via SD card, USB mini and RS-232C data port
• Pre-loaded versatile software functions for survey and setting out
• Dual battery system for long time use
• IP55 Dust & water protection
• Laser Pointer & Laser plummet
Details :
- Long EDM range measuring distance in reflectorless up to 500m and in prism mode up to 3,000m
- Large internal memory: 60000 points.
- Dual display as a standard equipment
- Easy transfer to a PC via SD card, USB mini and RS-232C data port
- Pre-loaded versatile software functions
- Dual battery system for long time use
- Graphic LCD / 20 characters x 8 lines / 240 x 96 pixels Display
- IP55 Dust to water protection
- Li-ion Hot swap batteries
- Measuring Method: Absolute rotary encoder
- Detection Method: Vertical / Horizontal angle
- Minimum Count: 1” / 5”
- 30 x Magnification, 1°20’ Field of View and 1.0m Minimum Focus
- Applications: Construction, surveying, station set up and measurements, Free stations, Stakeouts, GOGO calculations, Remote Elevation Measurement (REM), Remote Distance Measurement (RDM), Virtual Plane Measurement( VPM), Traverse, Area calculations, 3Dsurface and volume calculations
