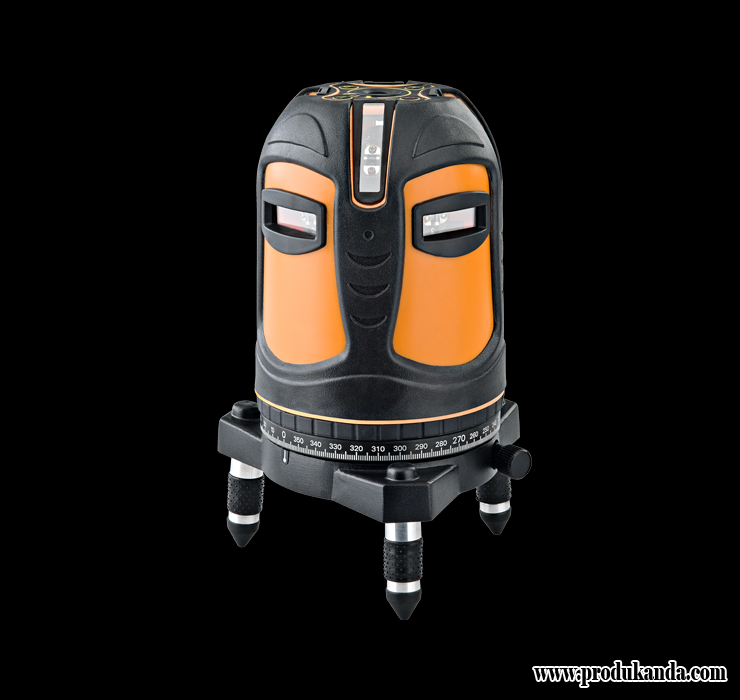

Cross Multi Line Laser Geo Fennel FL 70 Premium Liner SP
Geo Fennel FL 70 Premium Liner SP is a Selection PRO product with special features.
Features
- 5 laser crosses
- 4 vertical lines at 90° to each other
- 360° horizontal line
- Laser cross to the ceiling
- Plumb down beam
- Self-levelling function can be switched off
- Use with receiver FR 55 to extend working range up to 80 m
- Remote control for setting slopes
- Adjustable 360° circle
- Slow motion screw
- Audible and visible alarm when out of level
- Integrated floor tripod
- 5/8“ thread for use with standard tripod
Supplied with
- Receiver FR 55 with clamp
- Integrated floor tripod
- Remote control
- Li-Ion batteries and battery charger
- Magnetic target
- Laser glasses
- Adapter for tripod connection
- Compartment for alkaline batteries
- Container
Technical data
| Self-levelling range | ± 3° |
| Accuracy | ± 1 mm / 10 m |
| Working range w/o receiver | 30 m* |
| Working range with receiver | 80 m |
| Power supply | Li-Ion |
| Operating time | 6 – 14 h |
| depending on number | |
| of laser lines switched | |
| Dust / water protection | IP 54 |
| Laser diode | 635 nm |
| Laser class | 2 |
| Temperature range | -10°C bis +45°C |
